Send Enquiry At
Min Order Qty. : 5 Nos.
Key Features :
Brief Description :

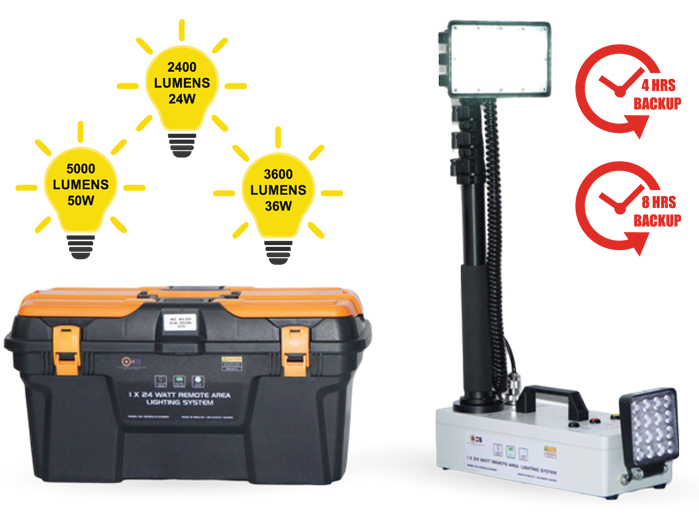

This system is suitable for compact and portable lighting requirements that require to focus light in particular direction. This system is more compact than the big portable lighting systems & other dual head Remote Area Lighting Systems. It is available in 3 models of 1X24 Watt, 1X36 Watt & 1X50 Watt versions and can even be customized. It has 3 dimming modes , viz Low, Medium & High. System is available in backup version of 4 Hours & 8 Hours. It has a remote control additional accessory that can facilitate remote control operations from upto 100 meters distance. Light mast facilities extension of light upto 5 feet from ground level. It has a 4 level battery level indicator to indicate battery levels. Light can be rotated in 360 ° in horizontal plane and 90 ° in vertical plane. Powerful BIS certified lithium battery provides uninterrupted illumination. System is IP65 and can be used in all weathers. System facilitates the use of cordless hand lamp of OES Make. For detailed technical specifications for tender, please email us.
Technical Specifications :
Parameter | 1X24 W RALS | 1X36 W RALS | 1X50 W RALS |
Led Power | 24 Watts | 36 Watts | 50 Watts |
Total Lumens | 2400 | 3600 | 5000 |
Run Time / Backup Time | 4 Hrs / 8 Hrs | 4 Hrs / 8 Hrs | 4 Hrs / 8 Hrs |
Battery Type & Voltage | Li-Ion, 24V | Li-Ion, 24V | Li-Ion, 24V |
Battery Capacity | 4 Hrs – 6 AH 8 Hrs – 12 AH |
4 Hrs – 8 AH 8 Hrs – 16 AH |
4 Hrs – 12 AH 8 Hrs – 24 AH |
Battery Protections | Battery Low, Over Charging, Short Circuit Protection |
Battery Low, Over Charging, Short Circuit Protection |
Battery Low, Over Charging, Short Circuit Protection |
IP65 / Waterproof | Yes | Yes | Yes |
Charge Time | 4 / 6 Hrs | 4 / 6 Hrs | 4 / 6 Hrs |
Input Charging Voltage | 220VAC, 50Hz | 220VAC, 50Hz | 220VAC, 50Hz |
Mast Height | 5.5 Feet, Adjustable | 5.5 Feet, Adjustable | 5.5 Feet, Adjustable |
Beam Spread | Wide or Narrow (Option) | Wide or Narrow (Option) | Wide or Narrow (Option) |
Country of Origin | Made In India | Made In India | Made In India |
Warranty | 1 Year | 1 Year | 1 Year |
Model No. | OESRALS1X24W4/8H | OESRALS1X36W4/8H | OESRALS1X50W4/8H |
