Model No. : OESHVDD+RHL -4
Min Order Qty. : 50 Nos.
Key Features :
Brief Description :

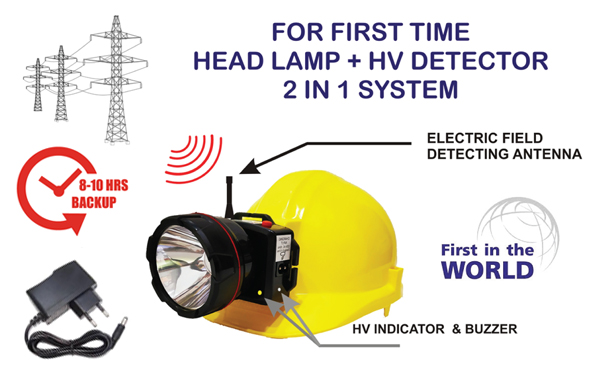

Launching for the first time in the world, High Voltage Detecting device with Rechargeable Headlamp. This device can provide powerful illumination & also detect when the user comes in vicinity with High Voltage. It is useful for sensing LT as well as HT voltages. Low voltages can be sensed only from close proximity of a few inches, however high voltages can be sensed from far distances. It can effectively detect voltages between 220 VAC to 765 KV. The device has 2 mode indications ( LED + Beep) . The head lamp & HV detector can provide uninterrupted work time of 8 to 10 hours. Since this device is a dual purpose ( 2 in 1 ) device the need for carrying a light source separately or high voltage detector separately is not required & also the user has his hands free for performing important tasks. Helmet is an ISI marked safety helmet. Ideal for Electricity Generation, Transmission, Distribution Companies, Railways Electrical Dept, All departments working with high voltages. This product comes with a 1 year warranty.
Technical Specifications :
Parameters | Value / Discription |
Model No. | OESHVDD+RHL -4 |
Battery Type | Internal Rechargeable Lithium Battery |
Voltage Detection Range | 220V AC To 765 KV |
Dectection Range | 220KV is detected from distance of 10 To 15 Mtrs & 11KV at Approx. distance of 6 To 7 Feet |
Beep Alert | Provided Nearly 100 dB |
LED Alert | Provided |
Variable Sensivity Adjustment | NO |
Head Lamp Wattage | 2 Watt |
Headlamp Backup Time | 8 – 10 Hrs |
Headlamp Operating Modes | 2 Modes : High & Low |
Lumens | 100 To 200 Lumens |
Lamp Up / Down Adjustment | Yes |
Reflector Type | Mirror Polished Reflector |
IP Rating | IP 52 |
Charging Indicator | Provided |
Battery Low Indicator | Provided |
Mounting Arrangeent for Helmet / Harness | Special Metal Clip |
Tested At | Tata 220 KV HV Open Line & NTH Lab Govt. Of India |
Warranty | 1 Year |
Minimum | 50 Nos. |
