Portable Hand-Held Rechargeable Hooter Cum Torch & Red + Green Signaling System
Portable Hand-Held Rechargeable Hooter Cum Torch Signaling System

Model No. : OES-2H1TSIGRG-01
Min Order Qty. : 50 Nos.

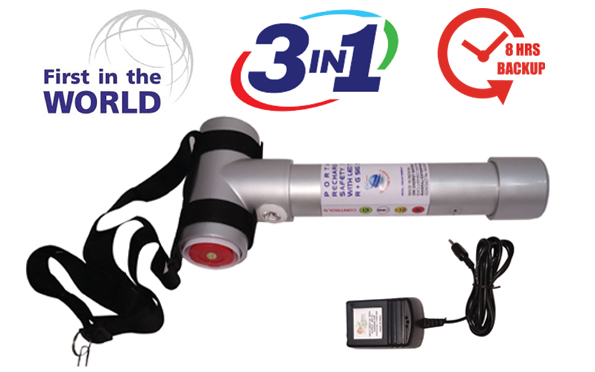

Portable Hand-Held Rechargeable Hooter Cum Torch Signaling System

Key Features :

  • First Time in world! - 3 In 1 System
  • Portable & Rechargeable Hooter System
  • Rugged, Light Weight & Compact
  • Maintenance Free
  • Rechargeable Lithium Battery
  • 105 DB + 105 DB Loud Bi-Directional Sound
  • Powerful LED Torch & Red + Green Signaling Lights
  • IP 63 All Weather Use
  • Dust, Water & Vibration Proof
  • Lightweight and easy to carry
  • Sturdy PVC Un-Breakable Enclosure
  • 1 Year Warranty
  • Application : Railways, Construction SItes, Airport etc.


Brief Description :

The Indian Railways has to carry out maintenance work on the railway tracks at regular intervals to ensure smooth functioning of their services. The officers and staff are so engrossed in the work, that they are unable to see or hear an approaching train. Sometimes the machinery noise suppresses the approaching train sound and this has proved to be fatal. Many such accidents have been recorded in the past and continue to happen even today. However if the Railway Officers or Staff are alerted well in advance about the approaching train then this can save their lives.

This life saving emergency device has been specially constructed to alert the officials / workmen about an approaching train to avert a misfortunate incidence or accident by blowing the Powerful 2X105dB Electronic Dual Siren ( Bi-Directional) built inside the system. During the night time, the white LED torch facilitates seeing in the dark as well as the LED RED+GREEN signaling system facilitates signaling to the Train to either STOP or MOVE making this device a total multi utility device. This system is designed , developed & manufactured in INDIA by Om Energy Savers & comes with a 1 year warranty. This product is not limited to use in Railways but can be used for other applications also where signaling of mass or group of people is required.

Technical Specifications :

Siren / Hooter Type Pizzo Electric Type Ultrs High Intensity of 105DB X 2
Siren Activation Method Press Switch Activated (Membrane / Push Button)
Reserve Mode Available for Emergency Operation when battery is empty
Battery Type Lithium Ion Battery
Charge Time 4 To 5 Hrs
Backup Time 4 To 5 Hrs in Continous Mode, When Battery is fully Charged
Torch LED TypeTYPE 1/2 Watt White LED, General Application LED
Signaling Light LED 1 Watt Rating Red Green LED with internal Heat Sink
Led Torch BEam Range 80 To 100 Mtrs in Dark Conditions (In Clear Atmospheric Conditions)
Led Torch Backup Time 40 Hours Plus in Continous Mode, When Battery is fully Charged
Visibility of Red / Green 500 Mtrs To 1000 Mtrs Depending On Atmosphere Turbulence, Pollution & CLimate / Weather
Backup Time Red / Green Flashing Light > 12 HOURS
Battery Protection Battery Full Cut Off & Battery Low Deep Discharge Cut Off
Enclosure Type Special Grade Polyvinyl Cholide Unbreakable Enclosure
Ingress Protection Water Resistant (IP-63), Vibration Resistant & Unbreakable Casing
Charger Electrical Charger Provided along with set
Carry Belt Provided
Operating Temperature Range -10 ° C To +55° C
Operating Humidity Range 0% RH TO 99% RH.
Approx. Weight 1250 Gms.
