Search Light & Torch

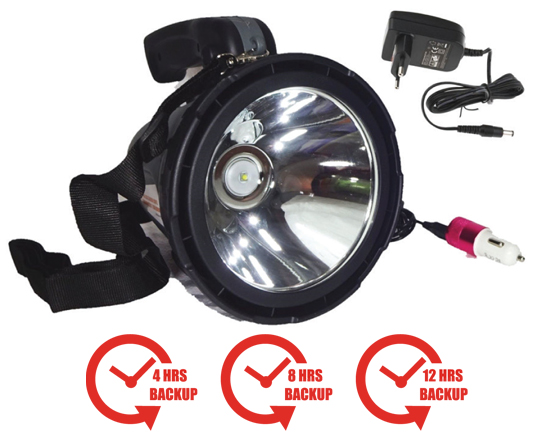

10 Watt Long Range LED Search Light / Dragon Light - 3 Models

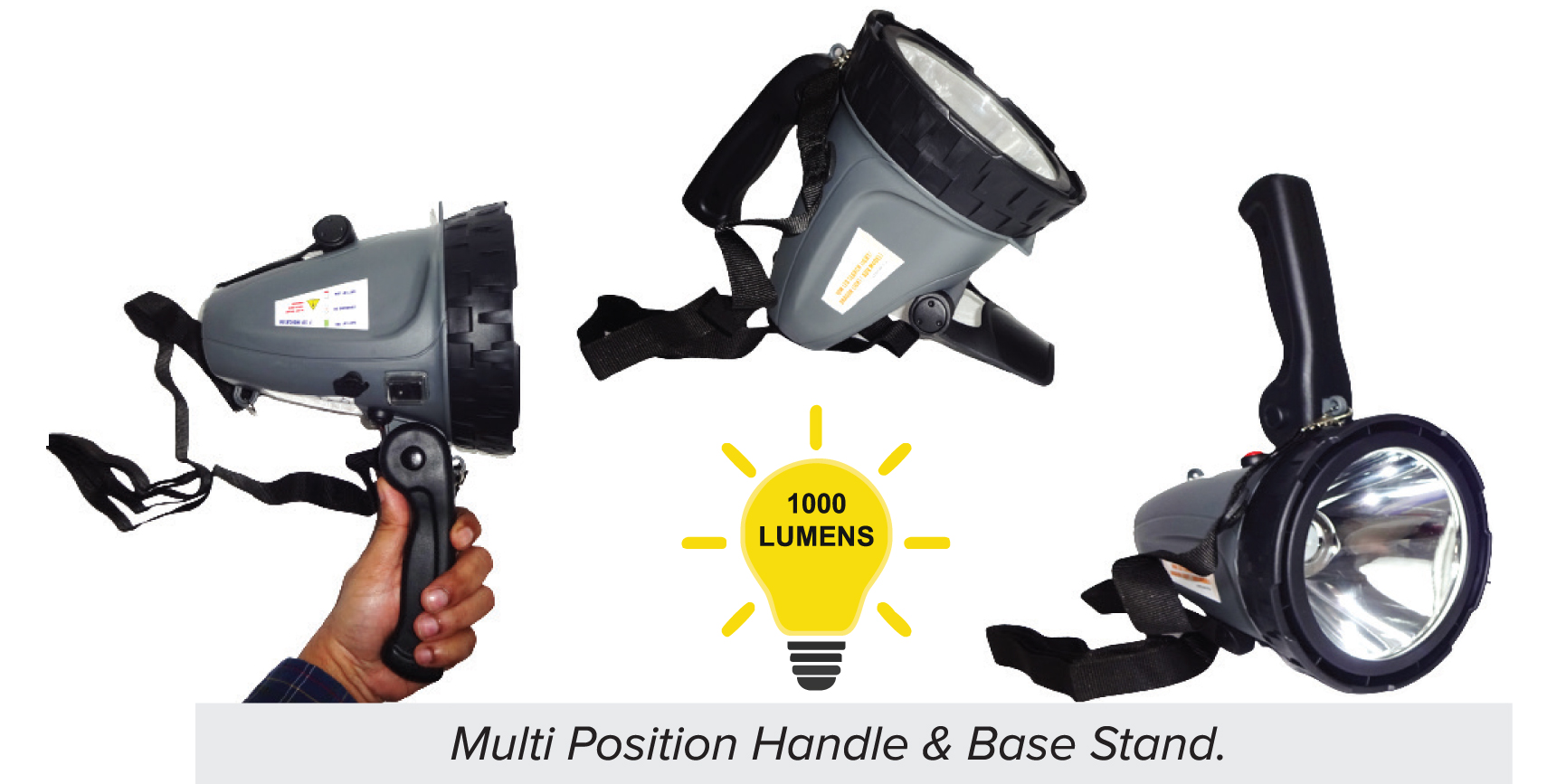

Multi Position Handle & Base Stand.
Key Features :
- 10 Watt Powerful Cree / Edison LED
- All Weather Use, IP64 / IP65 Models
- Available in Three Models
- Multiple Operating Modes depending on Model
- Powerful Rechargeable Lithium Battery (BIS – CERTIFIED)
- Fully Automatic Charging
- Charging & Battery Low Indications
- Special 2 Position Handle
Brief Description :
This powerful search light is specifically ideal for Police, RPF, Indian Army, Armed Forces, Disaster Management, Border Security Forces, Rescue Teams, Coast Guards etc. With its powerful 10 watt LED the beam is able to propagate long distances. Powerful Lithium Battery provides long run time in high power mode. 3 versions are available. The searchlight has 2 / 3 / 5 operating modes depending upon model. It can be charged from 220 VAC or 110VAC Supply ( Marine Applications) or even 12 / 24 V DC cigarette lighter output of vehicle*. It has optional Solar Charging Capability and can charge on solar panel ( additional accessory). System has a battery low indicator, charging & charging full and a fully automatic charging process. It has a special grip 2 position handle which can be used in signaling purposes also. A shoulder belt has been provided for carrying convenience. Advanced Model has 5 operating modes which include 3 dimming modes and one flashing mode and one SOS Signaling Mode.
Technical Specifications :
| Sr. No. |
Parameter / Features | Basic Eco Model | Regular Model | Advanced Model |
| 1 | LED Type | 10Watt CREE, USA | 10Watt CREE, USA | 10Watt CREE, USA |
| 2 | Reflector | Mirror Polished Aluminium | Mirror Polished Aluminium | Mirror Polished Aluminium |
| 3 | LED Wattage | 10 Watts | 10 Watts | 10 Watts |
| 4 | Total Lumens | 1000 | 1000 | 1000 |
| 5 | Reflector Diameter | 120 MM | 120 MM | 120 MM |
| 6 | Modes | 2 Modes Low & High Mode |
3 Modes Low, Mid, & High |
5 Modes Low, Mid, High, Flashing & SOS |
| 7 | Range in Clear Climatic Conditions |
Low – 350 Mtrs High – 750 Mtrs |
Low – 100 Mtrs Mid – 500 Mtrs High – 800 Mtrs |
Low – 100 Mtrs Mid – 500 Mtrs High – 1000 Mtrs SOS Mode – 1000 Mtrs Flashing – 1000 Mtrs |
| 8 | Backup Time | Low – 3 To 6 Hrs High – 2 To 3 Hrs |
0 | Low – 18 – 20 Hrs Mid – 12 – 14 Hrs High – 8 – 10 Hrs SOS Mode – >15 Hrs Flashing – >15 Hrs |
| 9 | Charge Time | 2 To 3 Hrs | 2 To 4 Hrs | 6 To 8 Hrs |
| 10 | Electric Charging | Provided | Provided | Provided |
| 11 | Vehicle Charging | No | No | yes |
| 12 | Battery Type | Lithium | Lithium | Lithium |
| 13 | Battery Capacity | 6,600 mAh | 8,800 mAh | 15,400 mAh |
| 14 | Indicators | Charger Connected | Charger Connected | Charger Connected |
| 15 | Over Charge protection | Yes | Yes | Yes |
| 16 | Deep Discharge Protection | Yes | Yes | Yes |
| 17 | Short Circuit Protection | Yes | Yes | Yes |
| 18 | IP Rating | IP65 | IP65 | IP65 |
| 19 | Operating Temp. Range | 00 C TO 550 C | 00 C TO 550 C | 00 C TO 550 C |
| 20 | Operating Humidity Range | 0 % RH TO 99 % RH | 0 % RH TO 99 % RH | 0 % RH TO 99 % RH |
| 21 | Operating Altitude Range | Up To 5000 Feet | Up To 5000 Feet | Up To 5000 Feet |
| 22 | 2 Posistion Handle | Provided | Provided | Provided |
| 23 | Base Position Stand | Provided | Provided | Provided |
| 24 | Govt. Lab tested | Can be Made Available | Can be Made Available | Yes |
| 25 | Enclosure Type | ABS Plastic | ABS Plastic | ABS Plastic |
| 26 | Approx. Weight | 800gms | 900gms | 1000gms |
| 27 | Carry Belt / Shoulder Belt | Provided | Provided | Provided |
| 28 | Warranty | 1Year | 1Year | 1Year |
| Model | OES10WLSECO | OES10WLSREG | OESLSRL10W01-ADV | |
| Min Order Qty. | 25 | 25 | 10 |
