Safety Helmet Accessories Head Lamps, Camers, High Voltage Detectors

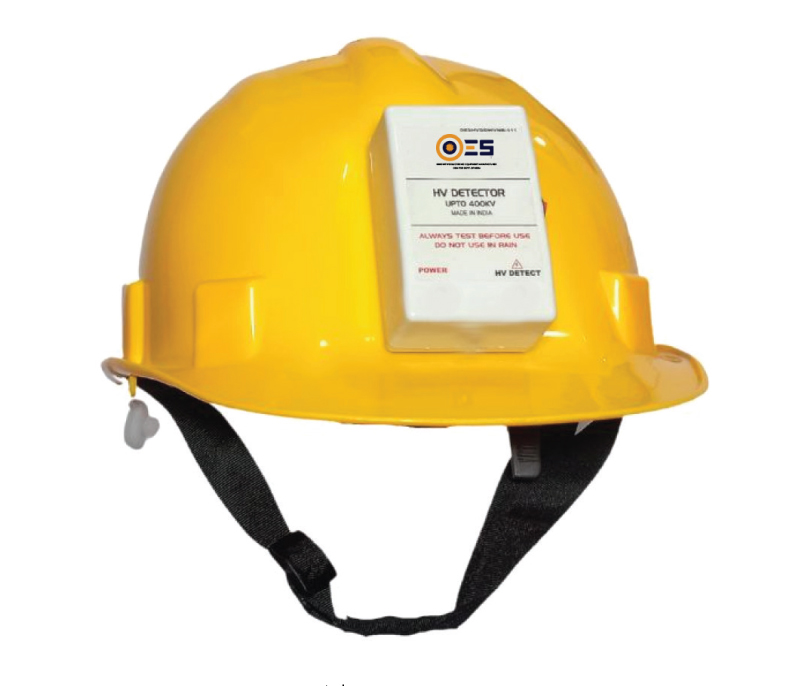

High Voltage Detection Device for 220VAC TO 765KV Non Rechargeable Version, Induction Tester with ISI Marked Safety Helmet
High Voltage Detection Device Non Rechargeable Version

Model No. : OESHVDDWVNR-111 – Non Rechargeable
Min Order Qty. : 500 Nos.

Key Features :

  • Life Saving Device
  • Mounts on an ISI Marked Safety Helmet
  • Govt. Lab tested
  • Detects Voltages from 220VAC (LT/LV) to 765KV AC (EHV)
  • 9 VDC Battery Operated
  • Extra High Sensivity
  • 2 Mode Alert (LED + BUZZER)
  • Light Weight
  • Made In India
  • 1 Year Warranty
High Voltage Detection Device Non Rechargeable Version


Brief Description :

This device can be helpful to warn & alert in advance when the user comes in close vicinity with High Voltage. It is useful for sensing Low as well as high voltages. Low voltages can be sensed only from close proximity of few inches, however high voltages can be sensed from far distances. It can effectively detect 11KV, 22KV, 33KV, 66KV, 132KV, 220KV, 400KV, & 765 KV. This device works on an standard 9 Volt non rechargeable battery and the battery has to be replaced after few days OR a month depending upon use. It has a 2 mode indication system viz :Buzzer & LED. Buzzer is loud and has a distinct tone. It can detect 11 KV from a distance of about 6 to 8 feet. If use is heavy and regular and over wide voltage ranges then one must go for the rechargeable mode. Ideal for Electricity Generation, Transmission, Distribution Companies, Railways Electrical Dept, All departments working with high voltages. This product is Govt. Lab Tested and comes with a 1 year warranty.

Technical Specifications :

Parameters Value / Discription
Model No. OESHVDDWVNR-111
Battery Type 9V Standard Dry Battery
Working Time 3 To 4 days in standby Mode &
2 days in active mode
Voltage Detection Range 220V AC To 765 KV
Beep Alert Provided
LED Alert Provided
Detection Range 220 KV is detected from distance of 10 To 15 Mtrs
& 11KV at approx. distance of 6 To 7 Feet.T.
IP Rating IP 52
Water Resistant Partly
Test Switch Has to be tested on 220 V Line
Mounting Arrangement for Helmet / Harness Velcro
Tested At NTH Lab, Kolkatta &
Tata 220 KV HV Open Line
Warranty 1 Year
Minimum Order Qty. 500 Nos

Note : For more detailed technical specifications for tenders pls email us.
