Instruments

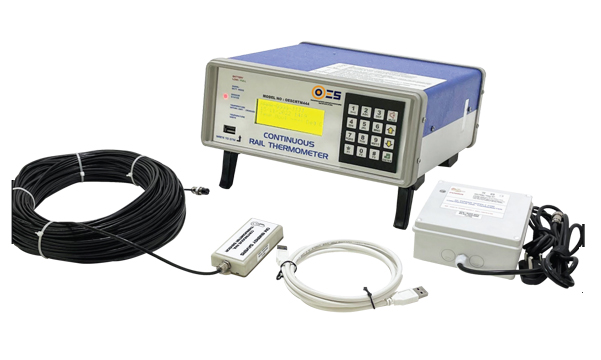

Continous Rail Thermometer / Digital Temperature Logger
Model No. : OESCRTM444
Min Order Qty. : 1 Nos.
Key Features :
- Digital IC based Temperature Sensor
- Digital LCD Nacklit Display
- 100 MTtrs Long Cable
- Noise Imunity Design
- Magnetic Coupling to Rail Track
- Wireless version also avilable
- IP65 Weather Resistant Sensor
- Pure Copper Heat Transfer Plate
- Sensor Fault / Cable Fault Direction
- More Than 24 Months Data Storage
- Alarms for Battery - Low, Min, Max Temp.
- 72 Hrs Battery Backup
- Powerful Lithium Battery
- Rly Division, Station, Date, Time, Temperature
- Data Available on Pen drive / USB & van be downloaded in PC
Brief Description :
This device is used to periodically, continuously measure, log (record) & display the rail track temperature, and also make it available on a storage device like external memory (USB Storage pen drive/ flash drive) so that it can be viewed, analyzed, on PC and or Laptop and even be printed if required. An internal non removeable non-volatile memory ( redundant memory ) serves as a backup memory in case the external memory data is deleted by mistake or is corrupted. It holds exact copy of the entire data that has been written to the external memory.
This data is useful to the Railways Officials for observing, recording & studying the minimum & maximum temperature that a railway track is subjected to due to varying atmospheric, seasonal & climatic changes. The system is rugged and uses components and raw material of reputed make. The System is compact, shock, vibration, dust & water resistant ( Outdoor Unit) . Its designed with non-corrosive material and some parts are coated with a special acrylic epoxy insulating coating / antirust coating for protection against corrosion. The system consists of 3 Units.
- Temperature Sensor Module (Outdoor Unit)
- Data Logger & Display (Indoor Unit)
- Data Transfer Module – External USB Pen Drive / Flash Drive / Memory card compatible with PC / Laptop. (Removeable & External)
Technical Specifications :
- Temperature Sensor : High accuracy, IC Based Digital, Range : -55oC to 85oC with + 1oC accuracy.
- Resolution : 0.1oC , Measurement Unit : oC, Scale Type : Linear
- Connection Type : Wired, Cable Length : 100 Mtrs, Connector Type : 5 Terminal
- Sensor Ingress Protection : IP65, Noise Immunity : Yes, Corrosion Protected with Copper Plate for Heat Transfer, Sensor Disconnect Detection., Low Current Drain : 60uA.
- Periodically , Continuously monitors & Displays recorded Rail Track Temperature, LCD 4 Line X 20 Character, Display with Backlight, Password Protected, Railway, Division, Stn Name, HH:MM, DD/MM/YY, and Current Temperature. Upper & Lower Temp, Display & Alarm Setting. Battery Backup : 72 Hrs, 8 hours Charging, Battery Life : 36 Months / 3 Years / 500 Charge Discharge Cycles, Battery Low Alarm and Status on Display. System Voltage: 12VDC, AC Adaptor 220VAC, 50Hz, Historic Data Access 18 Months ( Min / Max), User Friendly Design.
- USB Data Transfer Module, Can be used to download or transfer data to Laptop or PC
- Primary Non Removeable Memory for Data Redundancy / Backup. Format : Excel.
- Memory Type : Non- Volatile.
Made in INDIA
1 Year Warranty.
