Instruments

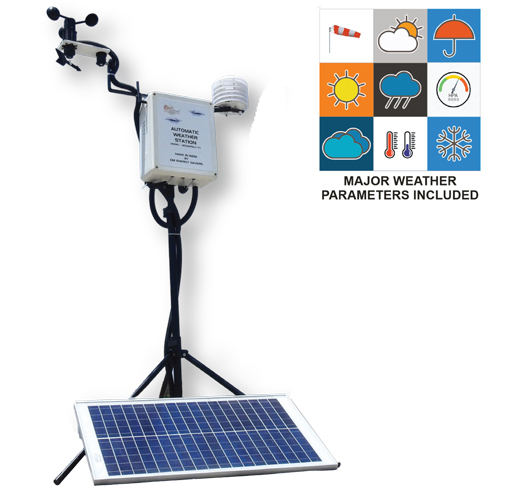

Automatic Weather Station With IoT
Automatic Weather Station With IoT

Model No. : OESAWSIoT-444
Min Order Qty. : 5 Nos.

Key Features :

  • Measures Temperature, Pressure, Humidity, Wind, Speed, Wind Direction, Rainfall
  • IoT Cloud Connectivity
  • 122 MM Tipping Bucket - 0.4mm Per Tip
  • Microcontroller based design for accurate measurement
  • Solar PV for Battery Charging
  • 3 Days Solar Autonomy
  • Optional Indoor Unit*
  • Data is available on Pen Drive in Excel format*.
  • Geo Mapping Possible
  • Designed developed & Manufactured by OM ENERGY SAVERS, Mumbai
  • Customized Models avaialble depending upon user requirements
  • 1 Year Warranty
Automatic Weather Station With IoT
Automatic Weather Station With IoT


Brief Description :

Recording weather parameters like Temperature, Pressure, Humidity, Rainfall, Wind Speed, Wind Direction etc, is very important for various government organizations and civic authorities. These systems are useful to others too like farmers, airports, educational institutes etc.

Weather Bureau grade Automatic weather stations are available to perform this job however they are very expensive. Some imported weather stations are available in India however they lack accuracy and have problems associated with spare parts and hence do not last long.

Introducing the Om Energy Savers, IoT based low cost automatic weather station / digital rainfall recorder. It can measure and record Temperature in degree Celsius, Pressure in HPA, humidity in %RH, Wind speed in Kmph, Wind direction (8 directions) and rainfall in mm. The data can be recorded on a pen drive as well as sent to the cloud over IoT. Tipping bucket is a 122 mm plastic enclosure electronic tipping bucket with a resolution of 0.4mm per tip, good for commercial use.

The outdoor unit consists of a powerful rechargeable lithium battery and a solar panel that powers the entire system and has a solar autonomy of 3 to 4 days. The Cloud Data is available on a dedicated dashboard and can be simply accessed from the laptop / computer or mobile phone with an internet connection. The cloud services are chargeable and can retain your data for 1 year or more based on the subscription model. The data update rate is 5 minutes and can be customized. Some other parameters like Air Pollution Monitor, Soil Moisture Content, and Ultra Violet radiations can also be embedded in to the system on demand.

Standard Model Technical Specifications :

Parameters measured Temperature, Pressure, Humidity, Wind Speed, Wind Direction, Rainfall.
Temperature Unit ° C , Accuracy : + 0.5 ° C,
Digital Temperature measurement module, Range : - 10°C to + 85°C
Pressure Unit HPA , Accuracy : + 5%, Digital Pressure measurement module,
Range : 700 to 1200 HPA.
Humidity : RH Relative Humidity, Accuracy : + 5%, Range : 0 to 100 %
Wind Speed KMPH, Accuracy : + 5%, Cup type wind anemometer.
Range : 0KMPH to 102KMPH
Wind Direction 8 Directions Accuracy : 100%, Wind vane type.
Directions: E, W, N, S, NE, SE, SW, NW.
Rainfall mm (millimeter) Range : 0mm to 10,000mm
Rainfall Measurement Tipping Bucket Rain Gauge (TBRG)
Rainfall Parameters Last Hour, Hourly, Daily, Monthly,
Annual, Rain Category, mm/hr rate.
TBRG Resolution 0.2mm per tip in SS TBRG (0.4mm per tip in plastic TBRG)
Data Storage USB Pen Drive (External) in Outdoor unit.
Data Transmission via IoT on Cloud
Indoor Unit Optional for non dependency on cellular / internet.
Display shows all parameters
Power Source Lithium ion battery pack & Solar PV Module
Solar Autonomy 3 to 4 Days.
Mounting Tripod Stand
Warranty 1 Year
