Portable Rechargeable Flood Lights & Lighting Systems

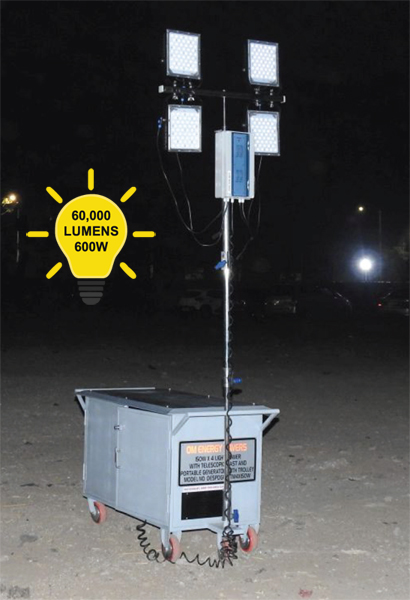

150 Watt X 4 Light Tower with Telescopic Mast & Portable Generator With Trolley
Power Light with Telescopic Mast & Portable Generator

MODEL : OESPDGLWTM4X150W
Min Order Qty. : 1 Nos.

Key Features :

  • pecial Flicker – Free Stabilization circuit
  • Portable System
  • Powerful 4 X150 Watt LED Lights (IP65)
  • All Weather Use System Design
  • 8 Feet Mast Height (Manually Adjustable)
  • Sturdy Trolley Cabinet with Heavy Duty Wheels
  • Powerful Petrol Generator
  • 360o Adjustable Light Direction (Horizontal)
  • Protected Electrical Joints & MCB
  • Remote Control for Lights
Power Light with Telescopic Mast & Portable Generator

Brief Description :

This system is specially designed to deliver high lumens when are required for field work. It consists of a manually operated telescopic tower / mast adjustable upto 8 feet height for mounting LED lights of required configuration. Default lights configuration is 4X150 Watts = 600WATTS (60,000 LUMENS !!!) . The LED lights can be rotated in 360° manually in required direction. These functions are also available in motorized automatic remote controlled versions in higher end models.

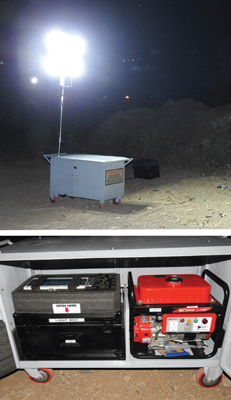

The Generator is single cylinder, four stroke engine of 1200 VA capacity. Each Lights can be controlled individually. The Lights are having an ingress protection of - IP65 and can be used in all weather. Generator system is also provided with cabinet and canopy arrangement to facilitate operation in rains. Heavy Duty Trolley with Big Wheels facilitates easy movement over rough terrain. System is protected with IP65 Junction Box that protects the connections and switches. The lights can also be turned ON / OFF using remote control. Ideal for Police, Disaster Management, Railways, Road Depts, Civil & Construction works, Relief & Rescue Operations. This system is designed, developed & assembled in INDIA by Om Energy Savers and comes with a 1 year warranty.

Technical Specifications :

  • 4 X 150 Watt Powerful LED = 600W (Total)
  • Special High Lumen LED
  • 1200 VA Power Petrol
  • 4 Stroke, Single Cylinder Engine
  • Fuel Tank Capacity : 7 - 8 Ltrs
  • IP65 Lights (All Weather) NABL Lab Tested
  • Special Water proof Connectors
  • Generator Protection Enclosure
  • Mast Height : 8 Feet, Adjustable
  • Stainless-Steel Heavy Duty Tripod (MAST)
  • Can sustain high winds of upto 50 Kmph
  • Special T Light Stand (Horizontal)
  • Individual Light Switches
  • Special Plug To Prevent Unauthorized Use of Generator
  • Generator Output : 220V AC, 50 HZ + 10
  • Single Phase Output
  • Recoil Start Engine
  • Surge / Spike Protected
  • 8 Mtr Insulated 3 core Cable
  • Over Current MCB Protection
  • Output Voltage Indication (Digital)
  • RF Remote Control with Horizontal Light Control
  • Remote Control Range : 50M Approx (In Open)
  • All Spares available with OEM
  • System Weight 80 KG ± 10 % (Excluding Trolley)
  • Made In India
  • 1 Year Warranty

Note : Image for representation purpose only. Actual looks may vary depending upon model
